Disabled Lift
Specifications for Elevators Designed for People with Disabilities

Elevators designed specifically for people with disabilities, mobility impairments, or the elderly must adhere to the following specifications:
• Elevator Cabin Dimensions:
The elevator cabin must be at least 1.60 meters wide and 1.40 meters long, or vice versa, and have a minimum height of 2.30 meters. There must be a clear, shatter-resistant glass panel allowing visibility between the inside and outside of the cabin, with a minimum width of 20 centimeters, a length of at least 80 centimeters, and positioned no more than 1.10 meters above the floor.
• Elevator Door Opening:
The clear opening width of the elevator door must be at least 90 centimeters. The door must also be equipped with a sensor system to prevent it from closing on passengers.
• Tactile Ground Surface Indicators (TGSI):
There should be a tactile surface area in front of the elevator door, measuring 30 centimeters in width and 90 centimeters in length, located no less than 30 centimeters and no more than 60 centimeters away from the door.
• Control Panel and Emergency Buttons:
Elevator call buttons, control buttons, and emergency signals must meet the following standards:
• The lowest button must be at least 90 centimeters from the floor, and the highest not more than 1.20 meters. The panel must be located at least 40 centimeters away from the interior corner of the elevator if the cabin dimensions are less than 1.50 meters in width and length.
• All buttons must have a minimum diameter of 2 centimeters, be marked with Braille, and produce both an audible sound and a visual signal when pressed.
• The area around the buttons must be free of any obstructions.
• Handrails:
Handrails must be installed along the inner walls of the elevator for added support and safety.
• Floor Level Indicators:
The elevator must have floor indicators, including numerical displays, audible announcements, and light signals indicating current floor level and movement direction (up or down).
• Exterior Signage and Indicators:
There must be a sign above the elevator door indicating the floor level and direction of travel, illuminated for visibility and clearly placed in the elevator lobby.
• Emergency Signals:
In the event of a malfunction, the elevator must emit both audible and visual alarms. A red flashing light alerts visually impaired users, while the sound alerts hearing-impaired individuals. A green flashing light must also be present to indicate that help is on the way after a distress signal has been acknowledged.
• Emergency Telephone:
An emergency phone must be installed inside the cabin and be operable at a height between 90 and 120 centimeters above the floor, allowing communication with external personnel.
• Backup Power Supply:
In case of a power outage, a backup power system must activate, ensuring the elevator can move to the nearest floor and open its doors, rather than stopping between floors.
• Emergency Lighting and Ventilation:
The elevator cabin must be equipped with emergency lighting and a ventilation fan, both capable of operating continuously for at least one hour in the event of a power failure.

All of the above specifications are based on the 2021 regulations issued by the Thai Ministry regarding the installation of elevators in public spaces for individuals with disabilities, impairments, or the elderly. These regulations ensure that any public building with more than two floors must be equipped with a ramp or elevator designed specifically for disabled users. The detailed design requirements help ensure ease of use, independence, and daily living convenience, making it possible for disabled individuals to live their lives as freely and comfortably as anyone else.

Let me know if you’d like a shorter version for marketing use or a version formatted for a brochure or website.

Vertical Wheelchair Lift Platform
YOURLIFT vertical wheelchair lift platform consists of lifting platform, guide and drive box.

Description
The YOURLIFT vertical wheelchair lift platform is composed of C steel as the main component, the“ YOURLIFTb bridge self reset switch operation, no pit installation, directly fixed on the concrete floor (under the bottomless pit outside circumstances, the concrete ground under the platform shall not be lower than the surrounding ground), the base plate can go down manually when the hydraulic valve is manually opened; the hydraulic drive, stable and safe lifting, external interface uses stainless steel material and aluminum plate electrostatic spray / chassis panel, small and beautiful appearance, does not hinder the surrounding environment. The lift is installed directly on the ground without construction supporting pit, the construction is simple, not easy to accumulate water, not easy to rust, easy maintenance, lifting height is 1-6 meters.

Safe Shaft: Aluminum alloy, glass shaft

Door Protection Device: The safety door and the platform are equipped with an Electronic lock linkage circuit to ensure safety.

Dc Model: Bulid-in battery automatic power supply system to ensure the normal use of machine after power off.

Auxiliary: The wired control box can be installed in the client is location and the operation of the machine circuit linkage operation.

Case Panel: 304 stainless steel wire drawing board

Platform Guard: 304 stainless steel wire drawing board

Agustin Vertical Wheelchair Lift PlatformTechnical Specifications:

Hot Tags: vertical wheelchair lift platform, China, suppliers, manufacturers, factory,

PJS Mini Home Car Parking System
PJS mini home car parking system is allowing access to the two vertical parking spaces in a compact fashion.

PJS mini home car parking system is allowing access to the two vertical parking spaces in a compact fashion. Every model can be designed differently to accommodate the user’s needs. If the parking slots are often used for bigger cars such as minivans the height of the stack parkers can be adjusted accordingly to fit almost any typically designed automobiles.
This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.

Highlights:
Doubles the parking spaces
1 driving level = 2 parking levels = cost saving
Independent parking
Low maintenance costs
High level of operating and functional safety according to EN norms
Carrying capacity per platform / per car available with 2000kg and 2600kg.

Features:
1. Super low height requirement: 3.1m
2. Simple & Easy: Both 380V and 220V power source
3. No extra foundations: Ordinary cement floor, Min. thickness 130mm
4. Simple installation: Fixing by bolts only
5. Convenient handling: Equipment can be easily moved in full set
6. Easy operation and convenient: similar to the home key switch
7. Environment friendly: Energy saving, less power consumption
8. Safe and reliable: Safety devices ensure the reliability

Advantages
1. Simple and compact structure; economical and practical.
2. PLC intelligent control; simple and convenient.
3. Equipped with multiple safety protection devices.
4. Equipped with abrupt stop button to ensure safe working conditions.
5. The upper parking space is used the same as the general ground parking spaces.

2 LAYERS PUZZLE PARKING SYSTEM
YOURLIFT 2 layers puzzle parking system is a smart design for two levels without pit independent

Car Elevator
YOURLIFT car elevator can be widely used in parking lot, car repair factory, car dealer, underground garage and so on.

YOURLIFT car elevator can be widely used in parking lot, car repair factory, car dealer, underground garage and so on.
With the development of economy and the continuous improvement of people's living conditions, cars gradually enter the homes of ordinary people. The price of our car elevator is one of the most cost-effective products on the market today. We guarantee that we will work with you to customize the size and dimensions of your car elevator (applicable to commercial and residential buildings) to meet your project needs. It is undoubtedly the first choice for your ladder.

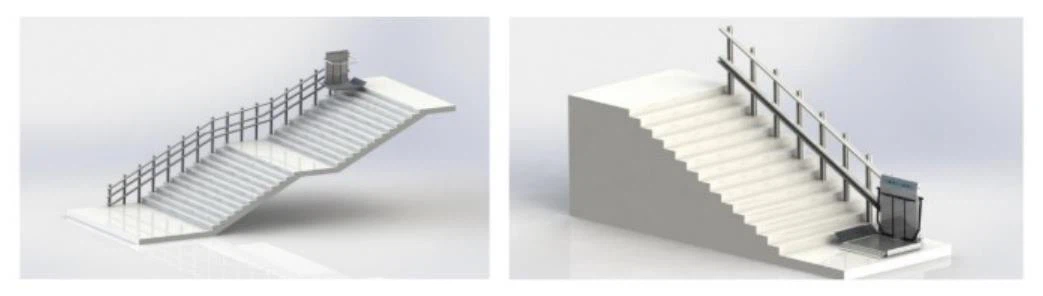

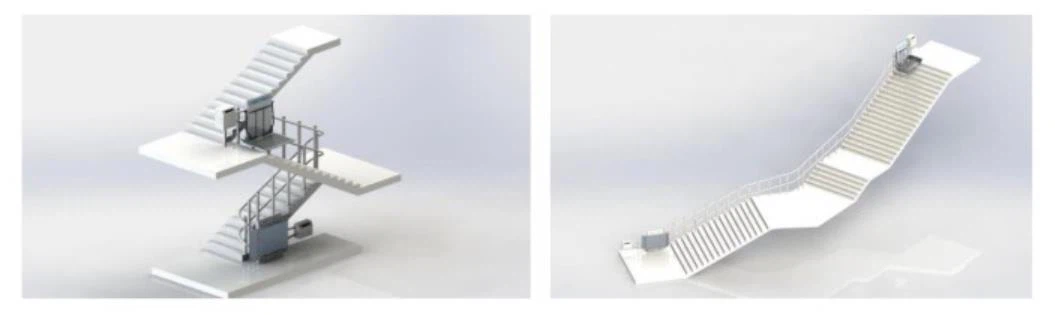

Inclined Wheelchair Lift Platform
The YOURLIFT inclined wheelchair lift platform is developed for entry over stairs with multiple levels, curves or intermediate landings. This lift carries a passenger with wheelchair up and down stairs by conveying the passenger along a rail system mounted parallel to the side of the stairs.

The YOURLIFT inclined wheelchair lift latform is developed for entry over stairs with multiple levels, curves or intermediate landings. This lift carries a passenger with wheelchair up and down stairs by conveying the passenger along a rail system mounted parallel to the side of the stairs.

Space-saving design: Sleek design with a foldaway and optional out-of-the-way parking that coordinates with any building design.
Machine roomless: Motor is unobtrusively installed at the top landing, with the controller located remotely keeping the visible components to a minimum.
Other standard features: Constant pressure buttons to move the lift up and down, pedestrian warning light and movement alarm, straight through platform, power folding platform, pendant control, fold-down seat with 330 lb (150 kg) capacity, modular rail system.
Standard finish options: Light gray
ADA-compliant platform: Optional ADA-compliant platform, ideal for public accessibility requirements.
Safety features: Sensor system on the platform, non-skid platform with side safety flaps, overspeed governor, manual lowering device, power folding safety arms, keyed access for call stations and emergency stop button.
Warranty: 36 months parts.
Optional Configurations: Vertical bend, steep start, 90 degree turn (inside curve, outside curve), 180 degree turn (inside curve) and special bends
Standard Platform Size: W30.5" x L49.2" (775 x 1250 mm), W28.3" x L35.4" (720 x 900 mm)
Other Options: Stabilizer for any travel under 20 degrees
Applications: Commercial, residential, indoor, outdoor*
Stair Types: Multiple levels of straight stairs,stairs with intermediate landings,stairs with turns
Capacity: 550 lbs (250 kg) Canada, 660 lbs (300 kg) USA
Speed: 12 ft/min (0.06 m/s)
Maximum travel: 164' (50 m)
Motor: 1 hp (0.75 kW), 3hp (2.2 kW) over 30 m
Gradient: Changing, with or without landings and turns, up to 55˚
Power Supply: 240 volts

Inclined Wheelchair Lift Platform Sprocket type oblique hanging

Features and introduction:

1. Rope chain drive: the guide rail is driven by a rope wheel and chain ball, which is suitable for long stairs and turning stairs.

2. Summon the upper and lower case：the platform can be summoned through the buttons of the upper and lower case.

3. Turnable three- dimensional turn: suitable for corridores with turns and stairs that require equipment to stop and turn.

Wheelchair Lift PlatformRack type oblique hanging

Features and introduction:
1. The rack-and-pinion inclined wheelchair lifting platform is driven by rack and pinion, which is safe and stable without any noise.
2. The two sections of the guide rail do not need a chassis, and the appearance is simple and generous, and does not take up extra space. The remote control or the call column is used for calling.
3. The platform can be powered directly with the cable without charging, ensuring stable operation up and down.

Hot Tags: inclined Inclined Wheelchair Lift Platform, China, suppliers, manufacturers, factory,

Stair Lifts

The YOURLIFT stair lifts can tailor-made according to your house style and staircase structure. It adopts an intelligent control system, matched with a large torque, low noise, and high efficiency motor.

Description

The Yourlift stair lifts use household voltage to charge, battery power supply, low energy consumption, power failure can continue to use, automatic charging at both ends of the track, automatic power-off after full without power consumption, long-term charging will not shorten the life of equipment and batteries.
The armrests, seat cushions, and footrests of the seat are foldable, and the track design closely fits the home staircase.

Three commonly types of Stair Lifts Available

Straight Style - This type is suitable for two floors above or below. With standardized guide rails, the installation time is usually the shortest.

Curved Style - This type is suitable for applications where there are curves, bends or platforms in the middle of the stairs. The installation of a curved staircase involves constructing a custom track to fit your unique staircase, and it may take longer to install.

Outdoor Style -This type is usually installed on porches, terraces and decks, or for helping navigate the uneven terrain leading to the pier. Depending on whether the stairs are straight or curved, customization may be required. Outdoor stair lifts are engineered to withstand the elements through the use of marine-grade vinyl and weatherproof covers.

Hot Tags: Stair Lifts, China, suppliers, manufacturers, factory,

Bestaufzug Bed Elevator

YOURLIFT bed elevator for hospital is safe, stable and reliable.

Description
Agustin Bed Elevator For Hospital:
Cabin Wall: Hairline Stainless steel finish
Ceiling: hairline Stainelss steel
Handrail: Flat Hairline stainless steel
Floor: PVC / MARBLE

Features:
1.Aseptic car design for hospital elevator
Make full use of the ultraviolet sterilization device and negative ion device to improve the air quality in the car, sterilize and disinfect, which is more beneficial to the health of patients and prevents cross-infection. The stainless steel plate in the car adopts anti-fingerprint technology, anti-pollution, and easy to clean.
2. Double active safety protection
The hospital elevator system implements active protection for the door area and non-door area, monitors the door opening status in the door area to prevent door sliding, sliding doors and other malignant accidents; when the hospital elevator is in the non-door area, the system device will lock the car door.
3. Emergency operation mode
4. Customerized
Customerized load capacity and car size to meet the different requirements of modern hospitals.A variety of materials and accessories options are specially designed for fashion and can withstand many years of heavy use
5. Fully functional and cost-effective
A set of reliable standard functions, especially suitable for patient transportation requirements, and some additional functions that add value and improve performance
